5G is the fifth generation of wireless communications technologies supporting cellular data networks. Large-scale adoption began in 2019 and today virtually every telecommunication service provider in the developed world is upgrading its infrastructure to offer 5G functionality. 5G communication requires the use of communications devices (mostly mobile phones) designed to support the technology.
The frequency spectrum of 5G is divided into millimeter waves, mid-band, and low-band. Low-band uses a similar frequency range as the predecessor, 4G. 5G millimeter wave is the fastest, with actual speeds often being 1–2 Gbit/s down. Frequencies are above 24 GHz, reaching up to 72 GHz, which is above the extremely high frequency band’s lower boundary. The reach is short, so more cells are required. Millimeter waves have difficulty traversing many walls and windows, so indoor coverage is limited.

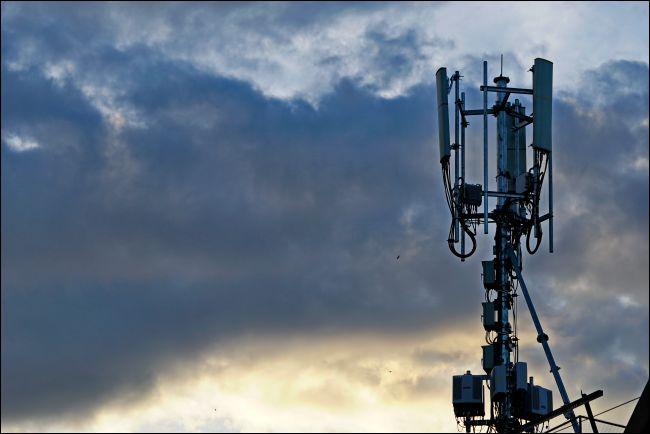

5G towers everywhere in your city and town
5G mid-band is the most widely deployed, in over 30 networks. Speeds in a 100 MHz wide band are usually 100–400 Mbit/s down. In the lab and occasionally in the field, speeds can go over a gigabit per second. Frequencies deployed are from 2.4 GHz to 4.2 GHz. Sprint and China Mobile are using 2.5 GHz, while others are mostly between 3.3 and 4.2 GHz. Many areas can be covered simply by upgrading existing towers, which lowers the cost. Mid-band networks have better reach, bringing the cost close to the cost of 4G. 5G low-band offers similar capacity to advanced 4G.
In the United States, T-Mobile and AT&T launched low-band services on the first week of December 2019. T-Mobile CTO Neville Ray warns that speeds on their 600 MHz 5G may be as low as 25 Mbit/s down.[1] AT&T, using 850 MHz, will also usually deliver less than 100 Mbit/s in 2019. The performance will improve, but cannot be significantly greater than robust 4G in the same spectrum.
Verizon, AT&T, and almost all 5G providers in 2019 have latencies between 25–35 milliseconds. The “air latency” (between a phone and a tower) in 2019 equipment is 8–12 ms. The latency to the server, farther back in the network, raise the average to ~30 ms, 25–40% lower than typical 4G deployed. Adding “Edge Servers” close to the towers can bring latency down to 10–20 ms. Lower latency, such as the often touted 1 ms, is years away and does not include the time to the server.
The industry project 3GPP defines any system using “5G NR” (5G New Radio) software as, “5G”,[2] a definition that came into general use by late 2018. Previously, some reserved the term 5G for systems that deliver download speeds of 20 GHz shared called for by ITU IMT-2020. 3GPP will submit their 5G NR to the ITU.[3] In addition to traditional mobile operator services, 5G NR also addresses specific requirements for private mobile networks ranging from industrial IoT to critical communications.
